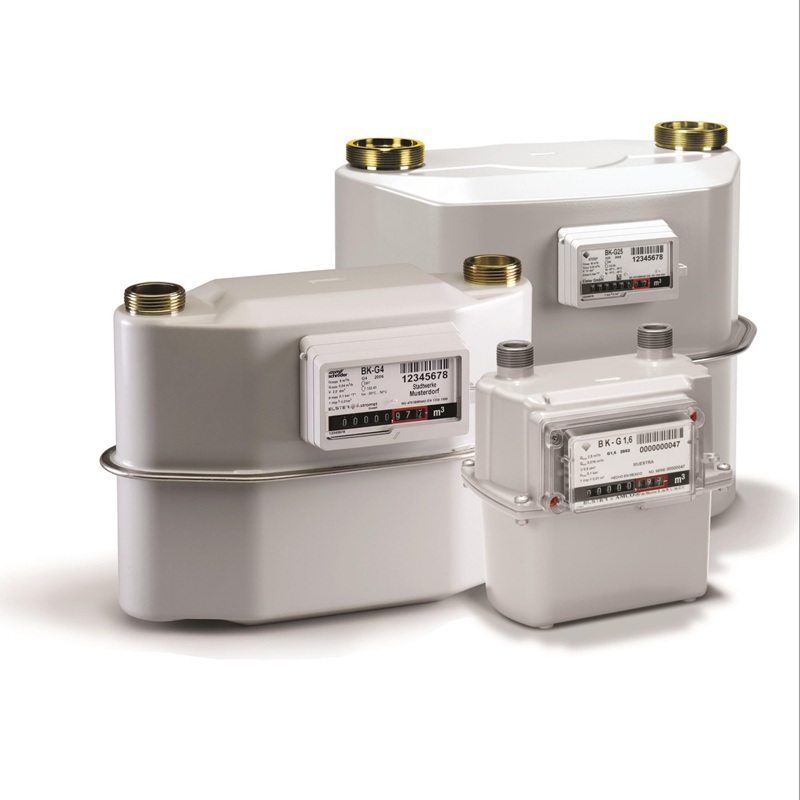

G6-G40 Commercial Diaphragm Gas Meters Overview
The G6-G40 Commercial Diaphragm Gas Meters are advanced multi-flow gas meters designed for commercial applications requiring precise gas measurement. These meters feature high accuracy, stable measurement errors, and enhanced reliability, meeting international standards such as EN1359 and OIML. Equipped with an anti-reversal and theft prevention mechanism, they ensure safe and efficient gas flow management. Their robust steel housing, elegant design, and long-term stability make them ideal for commercial use. The meters have a designed service life of 12 years, offering long-lasting performance under varying environmental conditions.
Benefits with Spectron
- High Accuracy & Stability
- Anti-Reversal & Theft Prevention
- Durable Steel Housing
- Wide Temperature Range
- Wide Temperature Range
Key Metrics
The G6-G40 commercial diaphragm gas meters are built with advanced multi-flow technology, ensuring highly accurate gas measurement across different commercial applications. They support a wide range of flow rates and operate efficiently under various environmental conditions. With a strong steel housing and compliance with international standards, these meters offer long-term reliability and safety in gas distribution.
Maximum flow rate ranges from 10 mu00b3/h (G6) to 65 mu00b3/h (G40).
Minimum flow rate varies from 0.06 mu00b3/h (G6) to 0.40 mu00b3/h (G40).
Cyclic volume ranges from 2 dmu00b3 (G6) to 22 dmu00b3 (G40).
Maximum working pressure of 50 kPa (G6-G16) and 30 kPa (G25-G40).
Accuracy class of 1.5 ensures precise readings.
Operating temperature range from -25u00b0C to +55u00b0C, with storage up to +60u00b0C.

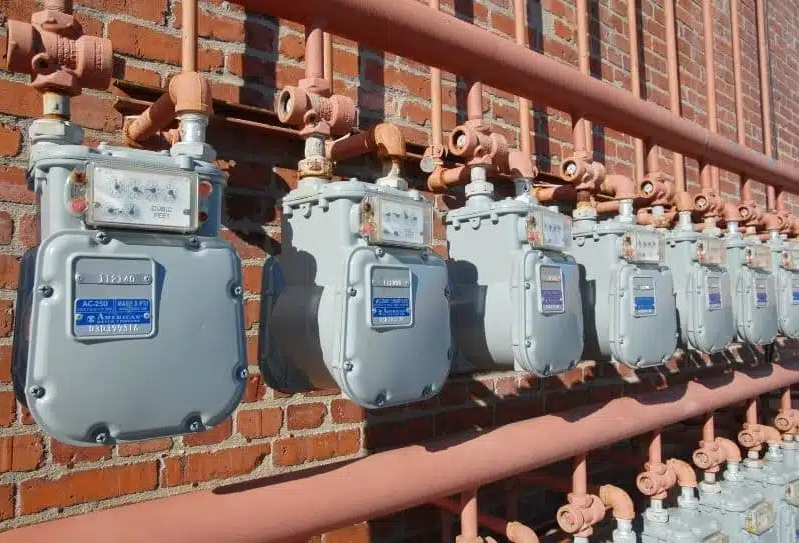

Process / Working
The G6-G40 Commercial Diaphragm Gas Meters operate through a four-chamber system separated by synthetic diaphragms. As gas flows through the meter, the chambers are periodically filled and emptied. This movement is transferred via a gear system to the crankshaft, which controls the gas flow by adjusting the valves. The gear's rotations are then transmitted to the index through a magnetic or mechanical coupling, ensuring accurate gas measurement. The robust design prevents reverse gas flow and unauthorized access, making it a secure and efficient solution for commercial gas metering.
