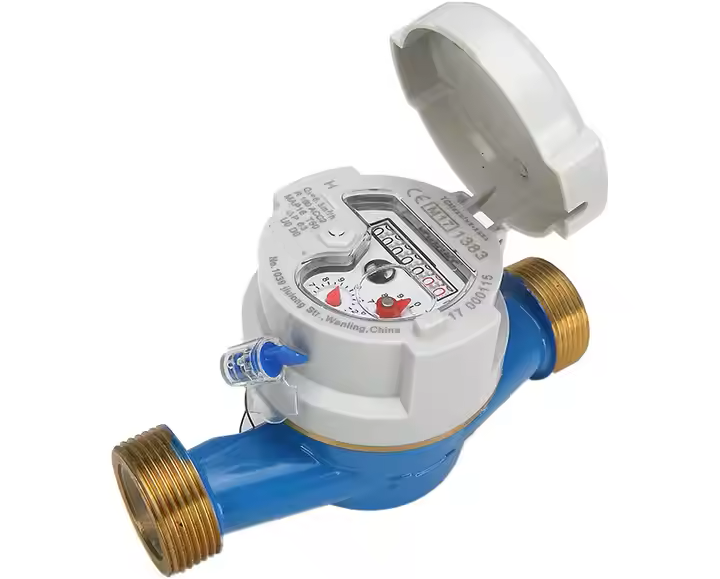

Single Jet Dry Type Water Meter Overview
The Single Jet Dry Type Water Meter is designed for precise water measurement in residential, commercial, and industrial applications. Featuring a single jet design with a dry dial and direct reading capability, it ensures long-term durability and accuracy. The meter supports upgradeable IoT modules for remote data collection, making it ideal for modern smart water management. It is available for both cold (30°C) and hot water (90°C) applications, with a 360° rotating dial for easy readability. With its vacuum-sealed register, frost resistance, and high accuracy, this meter guarantees reliable performance in various environments.
Benefits with Spectron
- Smart IoT Integration
- Long-Lasting Performance
- High Measurement Accuracy
- Enhanced Security Features
- Easy Installation & Maintenance
Key Metrics
The Single Jet Dry Type Water Meter is engineered for efficient water measurement, offering advanced connectivity, precision, and robust construction. It ensures accurate data collection while minimizing head loss and external interference. The meter's IoT-enabled design allows for automated electronic readings, reducing manual monitoring efforts and improving data accuracy.
Accuracy Class: ISO 4064 Class B for precise metering.

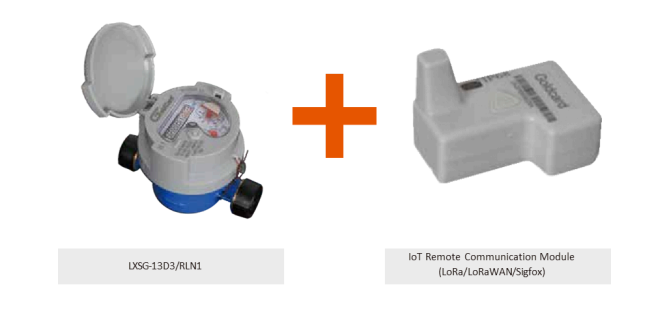

IoT Connectivity: Supports LoRa, LoRaWAN, and Sigfox.
Pressure & Temperature: Up to 1M Pa and 90u00b0C.
Data Storage: Saves 180 days of water consumption data.
Power Efficiency: 10-year battery life (1 communication/day).
Security & Durability: IP68-rated, anti-magnetic protection.
Process / Working
The Single Jet Dry Type Water Meter operates using a single jet measurement principle, where water flows through a single nozzle and drives an impeller. The rotational speed of the impeller is proportional to the water flow rate, ensuring precise volume measurement. The dry dial mechanism prevents water from entering the register, maintaining clear and long-lasting readings. The meter is equipped with an optional IoT communication module, allowing real-time remote data collection via LoRa, LoRaWAN, or Sigfox. With its robust design, frost resistance, and anti-magnetic protection, the meter provides reliable performance in varying environmental conditions.
