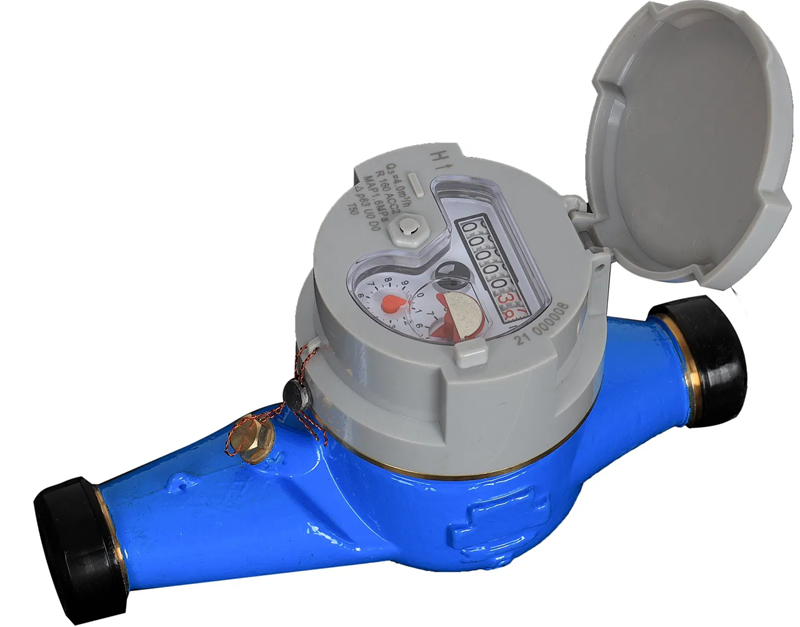

Multi Jet Dry Type Water Meter Overview
The Multi Jet Dry Type Water Meter is a highly precise, durable, and reliable metering solution designed for both cold water (30°C) and hot water (90°C) applications. With a 360° rotating dial for enhanced readability, it features a dry dial and direct reading mechanism. The meter supports an upgradeable remote meter reading solution, making it an ideal choice for modern water management systems.
Benefits with Spectron
- Multi-Jet Precision
- Advanced Communication Support
- Magnetic Tamper Protection
- Long-Lasting Performance
- Robust Construction
Key Metrics
The Multi Jet Dry Type Water Meter is designed with a dry dial, direct reading capability, and a 360° rotating dial for convenience. It conforms to ISO 4064 Standard Class B, ensuring precise water metering. With a working pressure of ≤1MPa and temperature thresholds of 30°C (cold water) and 90°C (hot water), it is suitable for various applications. The meter is built with a brass body, which can be painted or nickel-coated for extended durability. It features anti-magnetic protection, a vacuum-sealed register to prevent condensation, and IoT-ready communication modules supporting LoRa, LoRaWAN, and Sigfox.
Multi-jet system for stable and accurate readings.
Supports LoRa, LoRaWAN, and Sigfox connectivity.
Conforms to ISO 4064 Standard Class B
Works at u22641MPa, cold water u226430u00b0C, hot water u226490u00b0C.
Magnetic drive with external anti-magnetic protection.
Frost-resistant, vacuum-sealed register for long-term readability.
Process / Working
The Multi Jet Dry Type Water Meter functions using a multi-jet flow measurement principle, ensuring stable and high-precision water consumption tracking. It features a magnetic drive system that protects against external tampering and interference. The vacuum-sealed register prevents condensation and frost, keeping readings clear over extended periods. The meter is built with a durable brass body, with optional nickel coating for enhanced longevity. Supporting IoT integration through LoRa, LoRaWAN, and Sigfox, it allows for remote data collection and monitoring, making it an efficient and future-ready metering solution.
