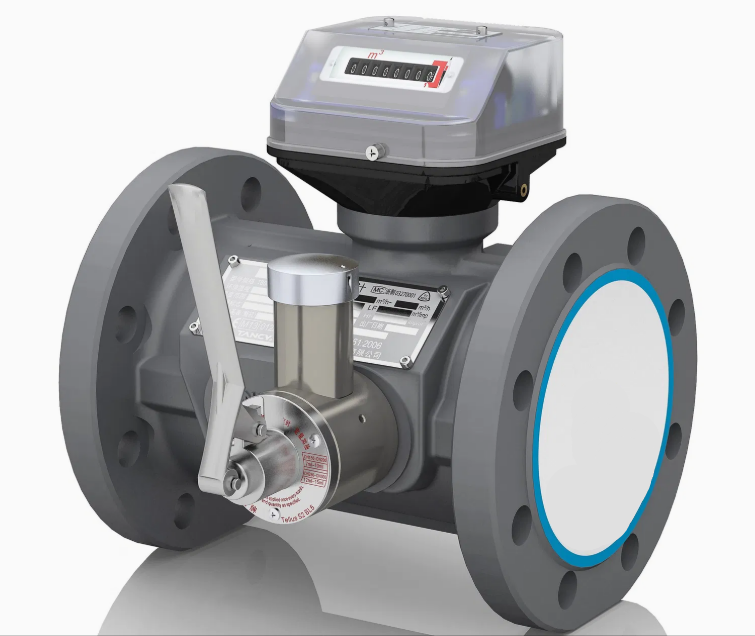

TBQM Turbine Gas Flow Meter Overview
The TBQM Turbine Gas Flow Meter is designed for accurate volume measurement of combustible and inert gases, including natural gas, propane, butane, and purified biogas. Suitable for residential, commercial, and industrial applications, it supports fiscal and in-plant measurement. With a wide measuring range, high-pressure tolerance, and durable housing materials like aluminum and carbon steel, it ensures long-term reliability. The meter is approved for installation in hazardous areas (Category 2, Zone 1) and meets global safety standards, making it an ideal solution for precise gas metering.
Benefits with Spectron
- High Precision Measurement
- Durable Construction
- Flexible Installation
- Certified for Safety
- Wide Measuring Range
Key Metrics
The TBQM Turbine Gas Flow Meter operates with a velocity-based measurement principle, ensuring precise gas volume tracking. It is engineered for stable performance under high pressure and varying flow rates. With advanced safety certifications and durable materials, it delivers reliable metering in diverse environments.
Meter Sizes: Ranges from G65 to G4000.
Nominal Sizes: Available from DN50 (2u201d) to DN200 (8u201d).
Pressure Class: Supports PN10 to PN100, Class 150 to 600.
Material: Constructed from aluminum and carbon steel.
Installation: Supports both horizontal and vertical setups.
Measuring Range: Wide 20:1 measurement ratio for accuracy.
Process / Working
The TBQM Turbine Gas Flow Meter operates on a velocity-based principle. As gas flows through, it accelerates a turbine wheel, which rotates proportionally to the flow rate. The rotation is transmitted to an external index reading unit via a magnetic coupling and decelerating transition mechanism. This mechanism ensures accurate pulse signal output (LF or HF) for precise measurement. The meter's robust design minimizes mechanical friction and fluid resistance, making it ideal for reliable gas metering in various environments.
